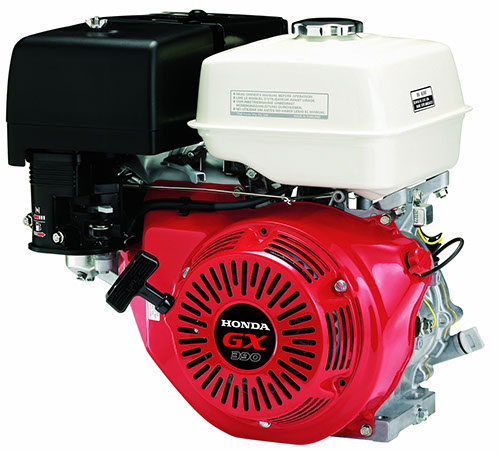

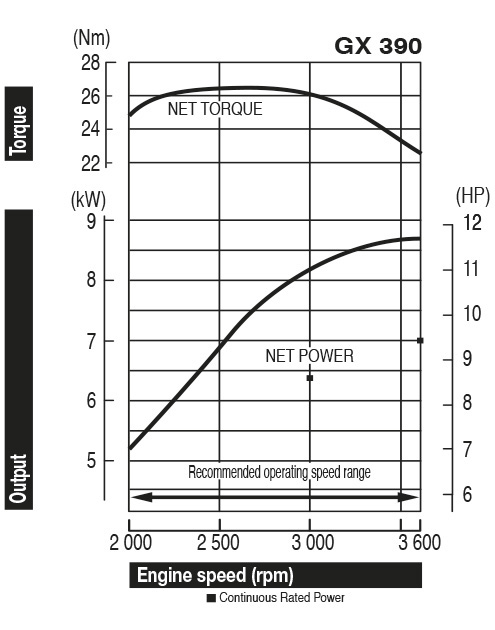

Air-cooled 4-stroke OHV



88 X 64 mm



389 cm3



11.7 HP (8.7 kW) @ 3,600 rpm



19.5 lb-ft (26.4 Nm) @ 2,500 rpm



Counter clockwise (from PTO shaft side)



8.2:1



25W, 50W / 1A, 3A, 10A, 18A



Butterfly Float Type



Digital CDI with variable timing



Recoil/electric



Splash



Centrifugal Mass Type



Dual element



1.16 US qt (1.1 L)



6.4 U.S. qts (6.1 litters)



Unleaded 86 octane or higher



69 lb (31.5 kg)



16.0" (407 mm)



19.1" (485 mm)



17.7" (449 mm)



Engine Type



Bore x Stroke



Displacement



Net Power Output*



Net Torque



PTO Shaft Rotation



Compression Ratio



Lamp/Charge coil options



Carburettor



Ignition System



Starting System



Lubrication System



Governor System



Air cleaner



Oil Capacity



Fuel Tank Capacity



Fuel



Dry Weight



Length (min)



Width (min)



Height (min)

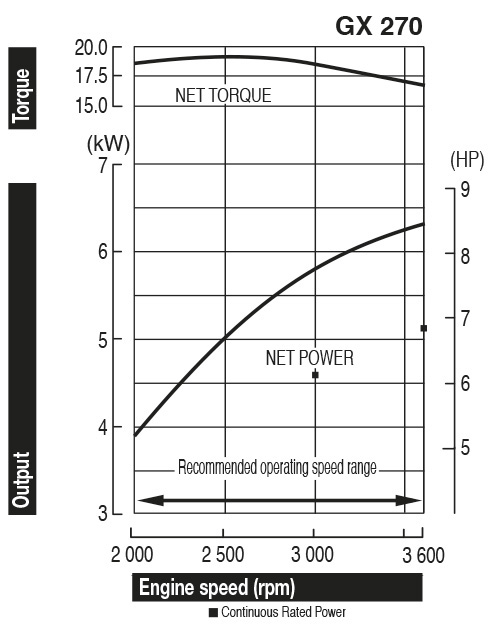

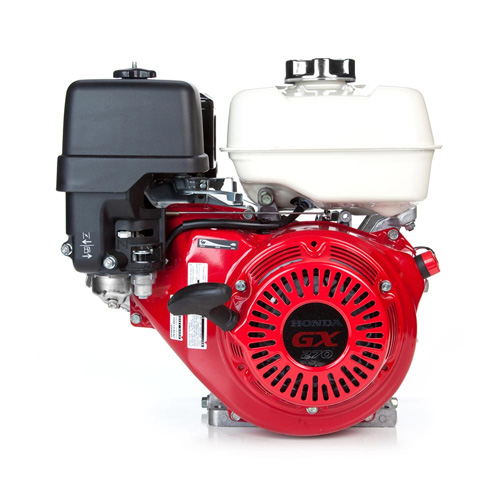

Air-cooled 4-stroke OHV



77 X 58 mm



270 cm3



8.5 HP (6.3 kW) @ 3,600 rpm



14.1 lb-ft (19.1 Nm) @ 2,500 rpm



Counter clockwise (from PTO shaft side)



8.5:1



25W, 50W / 1A, 3A, 10A, 18A



Butterfly Float Type



Digital CDI with variable ignition timing



Recoil/electric



Splash



Centrifugal Mass Type



Dual element



1.16 US qt (1.1 L)



5.6 U.S. qts (5.3 litters)



Unleaded 86 octane or higher



55 lb (25 kg)



15.0" (380 mm)



16.9" (429 mm)



16.6" (422 mm)

Engine Type



Bore x Stroke



Displacement



Net Power Output*



Net Torque



PTO Shaft Rotation



Compression Ratio



Lamp/Charge coil options



Carburettor



Ignition System



Starting System



Lubrication System



Governor System



Air cleaner



Oil Capacity



Fuel Tank Capacity



Fuel



Dry Weight



Length (min)



Width (min)



Height (min)

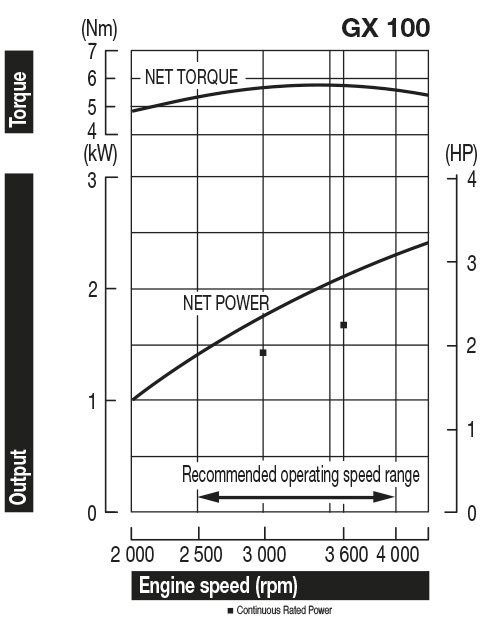

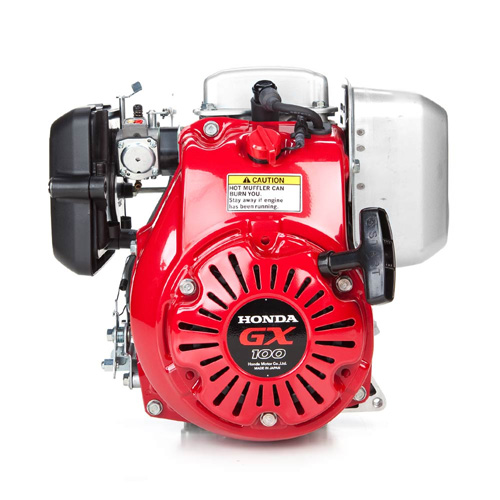

Air-cooled 4-stroke OHC



56 X 40 mm



98 cm3



2.8 HP (2.1 kW) @ 3,600 rpm



4.2 lb-ft (5.7 Nm) @ 3,600 rpm



Counter clockwise (from PTO shaft side)



8.5:1



Float Type (Options)



Transistorized magneto



Recoil



Splash



Centrifugal Mechanical



Dual element



0.42 US qt (0.40 litre)



0.81 U.S. qt (0.77 litre)



Unleaded 86 octane or higher



23.4 lb (10.6 kg)



11.6" (295mm)



12.0" (304mm)



15.8" (402mm)

Engine Type



Bore x Stroke



Displacement



Net Power Output



Net Torque



PTO Shaft Rotation



Compression Ratio



Carburettor



Ignition System



Starting System



Lubrication System



Governor System



Air cleaner



Oil Capacity



Fuel Tank Capacity



Fuel



Dry Weight



Length (min)



Width (min)



Height (min)

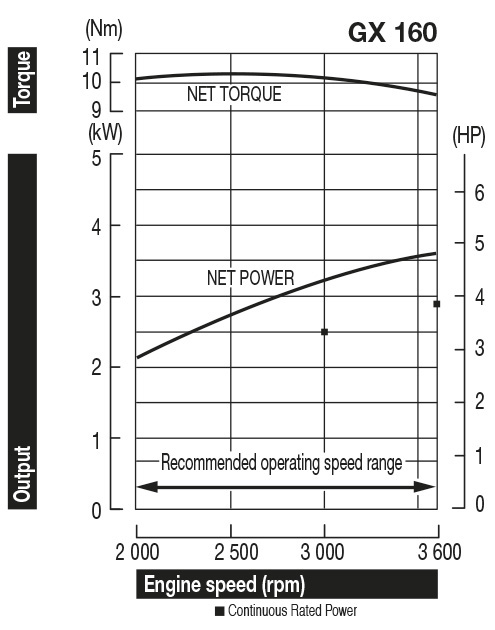

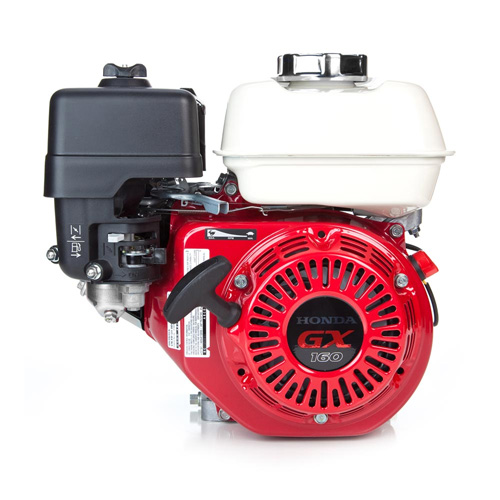

4-stroke single cylinder

OHV petrol engine

25° inclined cylinder

horizontal shaft



Cast iron sleeve



68 x 45 mm



163 cm³



9.0 : 1



3.6 kW ( 4.8 HP ) / 3600 rpm



2.5 kW ( 3.4 HP ) / 3000 rpm



2.9 kW ( 3.9 HP ) / 3600 rpm



10.3 Nm / 1.05 kg fm / 2500 rpm



Transistorized



Recoil (el. start optional)



3.1 Litre



1.4 L/h - 3600 rpm



0.6 Litre



312 x 362 x 346 mm



15.1 kg

Engine type









Cylinder sleeve type



Bore x Stroke



Displacement



Compression ratio



Net power



Cont. rated power



Max. net torque



Ignition system







Starter



Fuel tank capacity



Fuel cons. at cont. rated power



Engine oil capacity



Dimensions (L x W x H)



Dry weight
