CH260

SH265

CH270

MX300

MX360

MX400

SH260

SPECIFICATIONS

Model                                     Command PRO CH260



HP (kW)                                 6(4.5)



Displacement (cc)                 12.7 (208)



Bore in (mm)                         2.8 (70)



Stroke in (mm)                     2.1 (54)



Gross Torque ft lbs (Nm)      10.42 (14.07)



Compression Ratio                 8.5:1



Dry Weight lbs (kg)               38.7 (17.5)



Oil Capacity US qts (L)          0.63 (0.6)



Lubrication                             Splash



Dimensions LxWxH (in)       12.7 x 15.2 x 14.2



Backpressure Limit                30



Certified Power HP (kW)       6.4 (4.7)



Certified RPM                          4000



Engine Type                           Commercial





DOWNLOADS
OWNER'S MANUAL SERVICE MANUAL

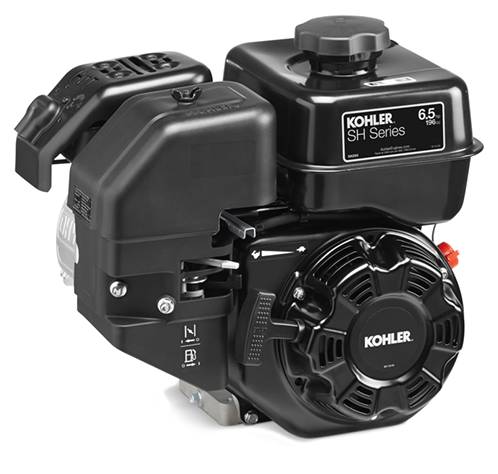

SH265

SPECIFICATIONS

Model                                         SH265



HP (kW)                                   6.5(4.9)



Bore in (mm)                            2.7 (68)



Stroke in (mm)                         2.1 (54)



Gross Torque ft lbs (Nm)         10.2 (13.8)



Compression Ratio                    8.5:1



Oil Capacity US qts (L)             0.63 (0.6)



Lubrication                                Splash



Back pressure Limit                  25



Certified Power HP (kW)          5.6 (4.2)



Certified RPM                             3600



Engine Type                               Consumer





DOWNLOADS
OWNER'S MANUAL SERVICE MANUAL

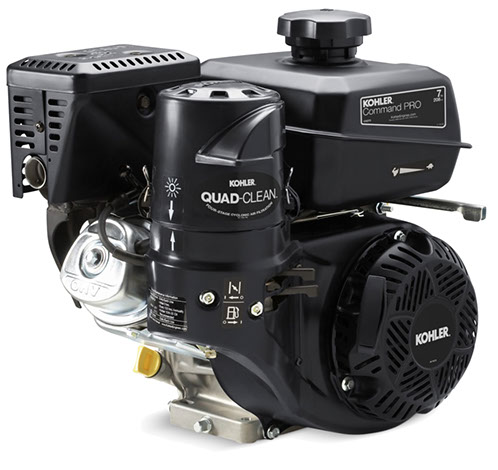

CH270

SPECIFICATIONS



Model                                    Command PRO CH270



HP (kW)                               7(5.2)



Displacement (cc)               12.7 (208)



Bore in (mm)                       2.8 (70)



Stroke in (mm)                    2.1 (54)



Gross Torque ft lbs (Nm)    10.5 (14.2)



Compression Ratio               8.5:1



Dry Weight lbs (kg)             38.7 (17.5)



Oil Capacity US qts (L)        0.63 (0.6)



Lubrication                           Splash



Dimensions LxWxH (in)    12.7 x 15.2 x 14.2



Backpressure Limit             30



Certified Power HP (kW)    6.6 (4.9)



Certified RPM                       4000



Engine Type                         Commercial





DOWNLOADS
OWNER'S MANUAL SERVICE MANUAL
